The Ultimate “Red” Roof: A Deep Dive into Ferrari World’s Record-Breaking Build

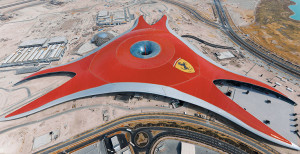

If you think your last commercial job was a monster, wait until you see the specs on Ferrari World Abu Dhabi. We aren’t talking about a few thousand squares; we’re talking about the world’s largest aluminum roof, a 2.15 million square foot scarlet structure that can be seen from space.

For the crews on the ground, this wasn’t just a big job; it was a three-year masterclass in what happens when you mix automotive design with heavy-duty civil engineering in 104°F desert heat. Here is the breakdown of the design, the materials, and the sheer scale that details this massive roofing project.

The Backbone: The World’s Biggest Space Frame

Before a single panel of aluminum was laid, the team had to build a skeleton capable of spanning nearly 2,300 feet from tip to tip. They used a MERO KK space frame system, which is essentially a massive geometric web of interlocking steel struts and nodes.

• The Numbers: We’re looking at over 13,600 US tons of structural steel.

• The Grid: The structure uses approximately 172,000 members (the bars) and 43,100 nodes (the joints).

• The “Shield”: The central part of the building, called the Shield, measures a massive 1,158 by 1,148 feet.

Because the roof is so huge, the engineers couldn’t just build one solid piece. They used structural isolation joints to separate the roof into four independent sections. This allows the metal to expand and move under seismic loads or the brutal desert heat without the whole thing buckling.

On-Site Roll Forming: No Room for Error

Because of the complex “double curves” inspired by a Ferrari GT body shell, you couldn’t just order these panels from a catalog. The individual aluminum panels were actually formed directly from roll stock on-site.

This allowed the installers to seam the panels during installation, ensuring a perfect fit for a roof that has a 7,218-foot perimeter. The result is the world’s largest lock-seam sheet metal roof.

Thermal Management: The Polyamide Secret

In the Abu Dhabi desert, heat is the enemy. The goal was to keep the interior at a constant 77°F while the sun was baking the exterior.

The roof uses a layered approach:

1. Steel Decking: ArcelorMittal supplied the base metal decking, using Hairexcel 60/15 for non-perforated sections- a 2.4 mil (60 micron) polyurethane coating designed to survive harsh, sandy, and salty environments.

2. Fasteners that Breathe: They didn’t use standard metal brackets. Instead, they used a patented system with Ultramid A3WG10 mounting brackets, a glass-fiber-reinforced polyamide from BASF. These plastic clips have a thermal conductivity of λ = 0.37, which is significantly lower than aluminum, meaning they stop heat from “leaking” into the building.

3. Insulation: They sprayed on 3 inches of charcoal-tinted Monoglass insulation over the decking. This gave the roof an R-value of 12 and an NRC (sound rating) over 0.95- essential for muffling the noise of the world’s fastest roller coaster inside.

Waterproofing and the “Red Flag”

Waterproofing over 2 million square feet is no joke. SOPREMA sent 11 shipping containers full of their “Red Flag” membrane from Canada to the UAE. Their lab had to specifically design this membrane to withstand heat well above 104°F.

The installation was a grind. Groups of 30 to 50 workers had to work around the clock, often pulling night shifts just to escape the daytime heat while they rolled out the membranes.

Walking on the Legend: The Roof Walk Experience

For those who want to see the craftsmanship up close, Ferrari World actually lets people walk on the roof. The “Roof Walk” is a guided 90-minute experience that takes visitors across 1,968 feet of that iconic red aluminum.

It is the ultimate “roof inspection” for the general public. Visitors are strapped into a full body harness and clipped into a safety system as they walk 164 feet above sea level. The highlight of the trek is standing right next to the world’s largest Ferrari logo.  It’s 213 feet long and 157 feet wide, making it a massive landmark even from the sky.

The Finish: Rosso Corsa

Finally, there’s the color. That iconic “Rosso Corsa” (racing red) isn’t just any paint. The technicians developed a lead-free, high-performance enamel system to ensure the color wouldn’t fade or “blanch” under high UV radiation and sand abrasion.

Maintenance: The Abseiler’s Playground

How do you clean a roof that’s equivalent to 37 football fields? You don’t use a ladder. The building is maintained by professional abseilers and specialized Building Maintenance Units (BMUs). Whether it’s cleaning the massive 328-foot-wide central glass funnel or inspecting the aluminum seams, this roof requires constant, specialized attention to keep that “Ferrari finish” looking sharp.

Project Specs at a Glance:

• Total Roof Area: 2.15 million square feet

• Max Height: 164 feet above sea level

• Roof Walk Length: 1,968 feet

• Structural Steel: 13,635 US tons

• Guttering: 22,638 feet

• Central Funnel: 328 feet diameter at the top, 56 feet at the base
